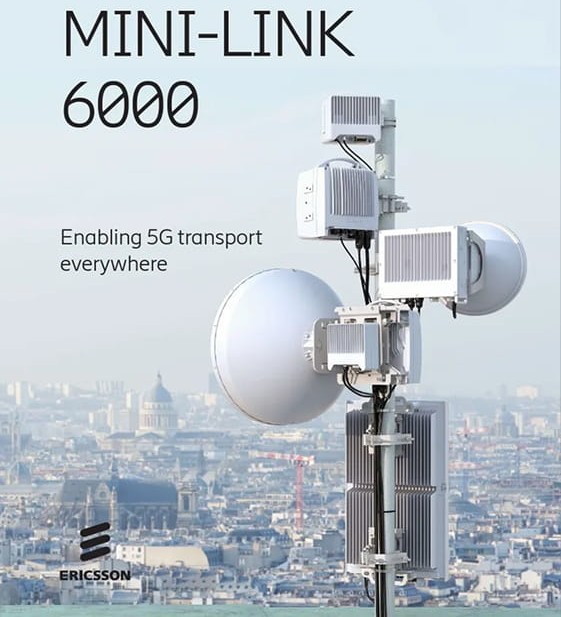

MINI-LINK 6000 – Enabling 5G Transport Everywhere

Ericsson multiband booster increases capacity up to ten fold by bonding carriers in different frequency bands.

The MINI-LINK 6000 portfolio is available for ubiquitous 5G transport with E-band and with traditional frequencies in both shorthaul and long haul. MINI-LINK 6000 provides 10Gbps 5G transport in urban, suburban, and rural applications.

With unmatched flexibility, MINI-LINK 6000 provides the right solution for each part of the network, all deployment scenarios and site types, enabling sound investments in line with the service providers’ needs. The portfolio offers both split mount and all outdoor shorthaul as well as long haul solutions covering the complete microwave spectrum from 4 up to 80 GHz.

MINI-LINK 6000 offers advanced packet functionality including advanced sync and L3 VPN, using IP/MPLS, as well as L2. All network scenarios are supported with superior performance combined with the lowest possible cost of ownership.

The MINI-LINK 6600 family provides the highest node capacity in the smallest form factor with fixed and semimodular nodes. MINI-LINK 6600 supports multiple radio links with a capacity of up to 2.5Gbps per link. Using high modulation schemes, 16k QAM, XPIC, carrier aggregation, MIMO, wide channels like 112 MHz, low latency, and multiple 10G interfaces ensures deployment flexibility and future-readiness. In addition, MINI-LINK 6600 also supports TDM traffic.

Highest system gain – Customers can use our licensed microwave and E-band technology to achieve high-capacity. high-availability, and longer reach and enable higher throughput in a smaller footprint.

Maximum flexibility – We offer indoor, ootdoor, and split deployment options, covering the full range of site types, all with common management for easy OA&M.

Future-proof – By supporting all (6-80 GHz) frequendes, microwave solutions are highly configurable for whatever 5G needs arise. Beyond 2020, W- and D-Band radios will deliver 100 Gbps link capacities.

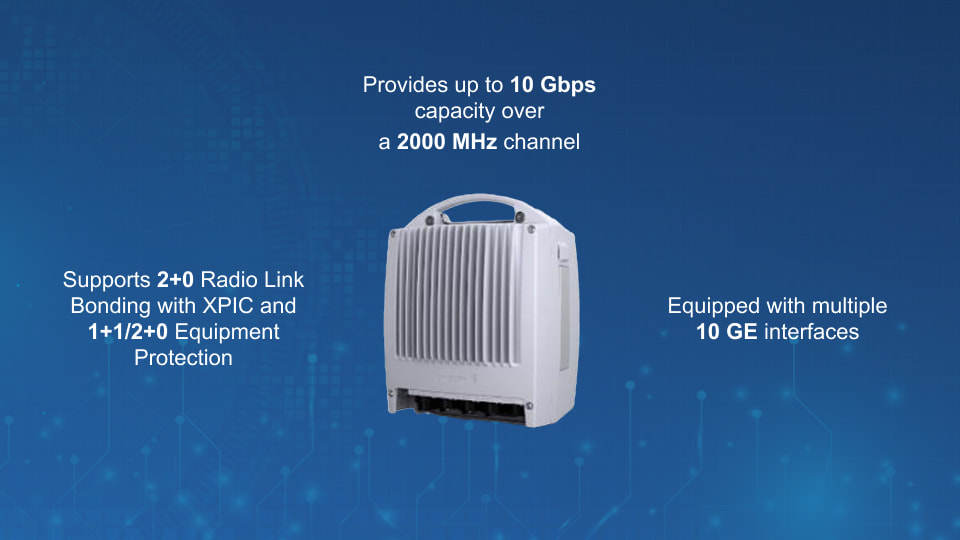

MINI-LINK 6352 – Very High Capacity Microwave

MINI-LINK 6352 is an all outdoor microwave node, and part of the successful MINI-LINK portfolio.

MINI-LINK 6352 provides up to 10 Gbps capacity over a 2000 MHz channel in the E-band (70/80GHz). MINI-LINK 6352 also supports 2+0 Radio Link Bonding with XPIC and 1+1/2+0 Equipment Protection (EQP) as well as Multi-Band Booster configurations together with MINI-LINK 6600/TN. For maximum connectivity, MINI-LINK 6352 is equipped with multiple 10 GE interfaces.

MINI-LINK 6352 has an embedded L2 switch, enabling aggregation and switching between all traffic ports, that makes it ideal for multiple combinations of mobile backhaul solutions. Use it as an all outdoor solution, aggregating multiple south-bound directions to one high capacity northbound direction. MINI-LINK 6352 is also suitable for cascading or as a repeater solution. It can also be connected to any other MINI-LINK indoor unit using available Ethernet ports.

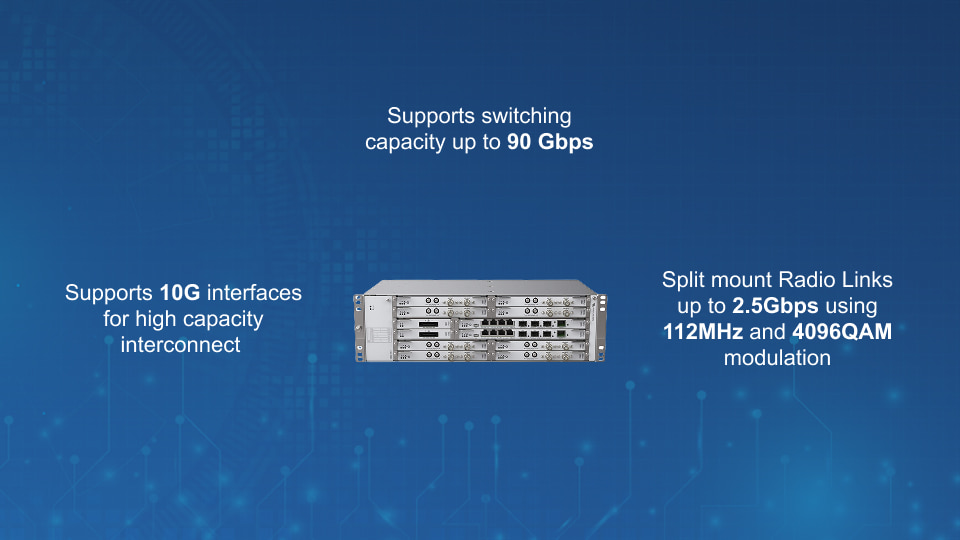

MINI-LINK 6600 – High Capacity Node and Radio Link

MINI-LINK 6600 is the high capacity indoor node in a split-mounted microwave system. It supports switching capacity up to 90 Gbps and market leading split mount Radio Links up to 2.5Gbps using 112MHz and 4096QAM modulation. It also supports 10G interfaces for high capacity interconnect or use of very high capacity E-band radio links.

MINI-LINK 6600 has an integrated Ethernet switch/router supporting Customer and Provider mode switching and IP Routing and MPLS L3 VPN.

In MINI-LINK 6600, compact nodes as well as modular nodes using plug-in units are available. This makes it easy to customize configurations. The full range of MINI-LINK outdoor units can easily be combined in many different ways: traditional frequencies (6-42 GHz), Vband 60 GHz, E-band 70/80 GHz, single and dual carrier, Coax and Ethernet interface.

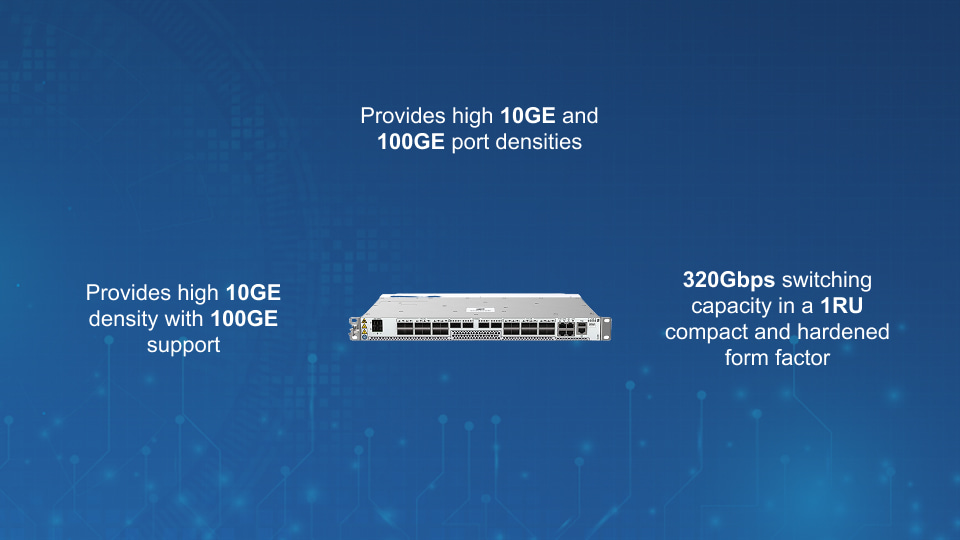

Router 6675

The Router 6675 is a high capacity pre-aggregation and aggregation router, designed to enable high quality network service delivery while at the same time lowering operating costs through features such as a completely filter-less mechanical design. It provides high 10GE and 100GE port densities in a compact and hardened 1RU form factor enabling lower rental costs and lower OPEX. It supports VPN services over IP/MPLS networks, service provider SDN, service exposure using NETCONF/YANG, extensive quality of service and precise synchronization features.

The Router 6675 provides high 10GE density with 100GE support and 320Gbps switching capacity in a 1RU compact and hardened form factor enabling lower rental costs and lower OPEX.

LTE-A enhancements such as COMP and e-ICIC that enable efficient use of spectrum have strict synchronization requirements. The Ericsson synchronization solution comes pre-verified to work with Radio.

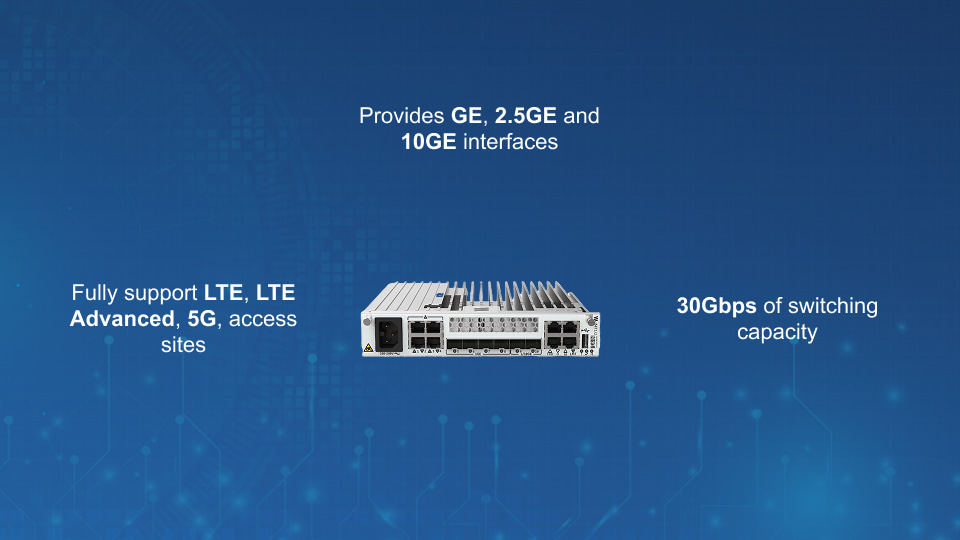

Router 6471

The Router 6471 is an ultra-compact and temperature hardened cell site router, designed to enable high quality network service delivery while at the same time lowering operating costs through features such as a completely fan-less and filter-less mechanical design. It provides GE, 2.5GE and 10GE interfaces with right cost points, small footprint and superior synchronization features.

The Router 6471 has strong security features such as IPSec, vendor credential and vendor software authentication ensuring data security even in insecure environments.

With 30Gbps of switching capacity, the Router 6471 delivers performance needed to fully support LTE, LTE Advanced, 5G, access sites for years to come.
